HighTAG™ 971 LTE Analyzer

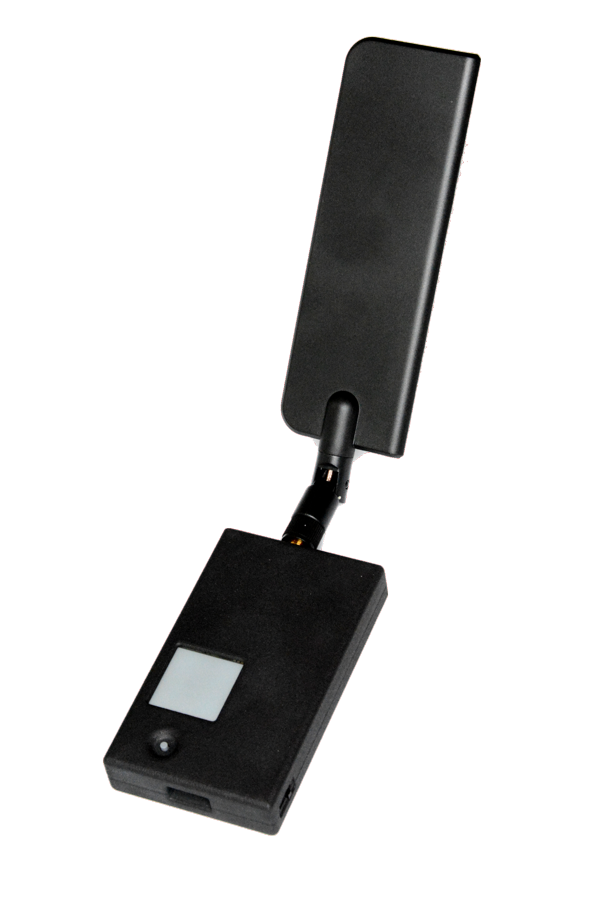

HT971.png HighTAG™ 971
% % % %

HighTAG™ 971

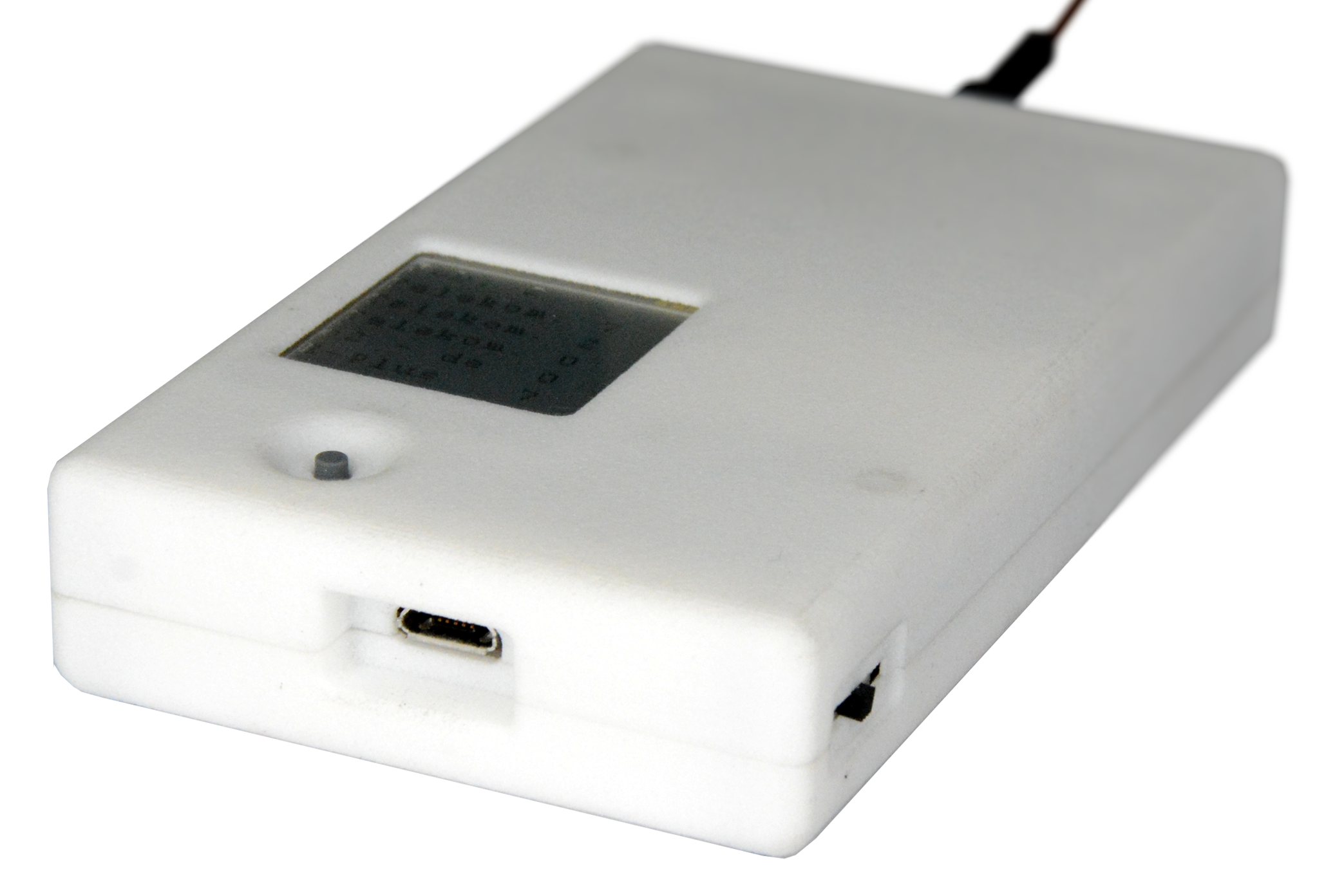

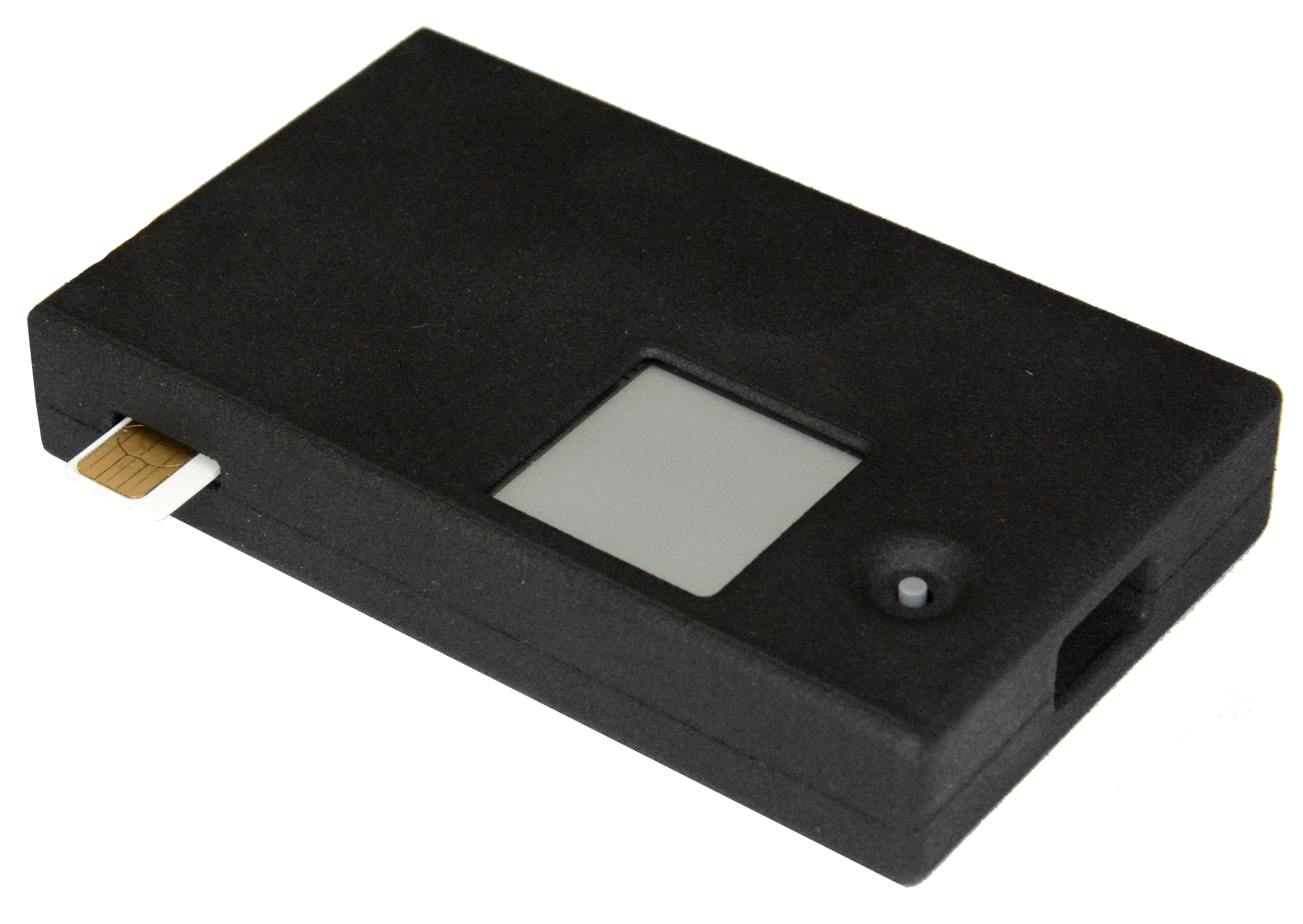

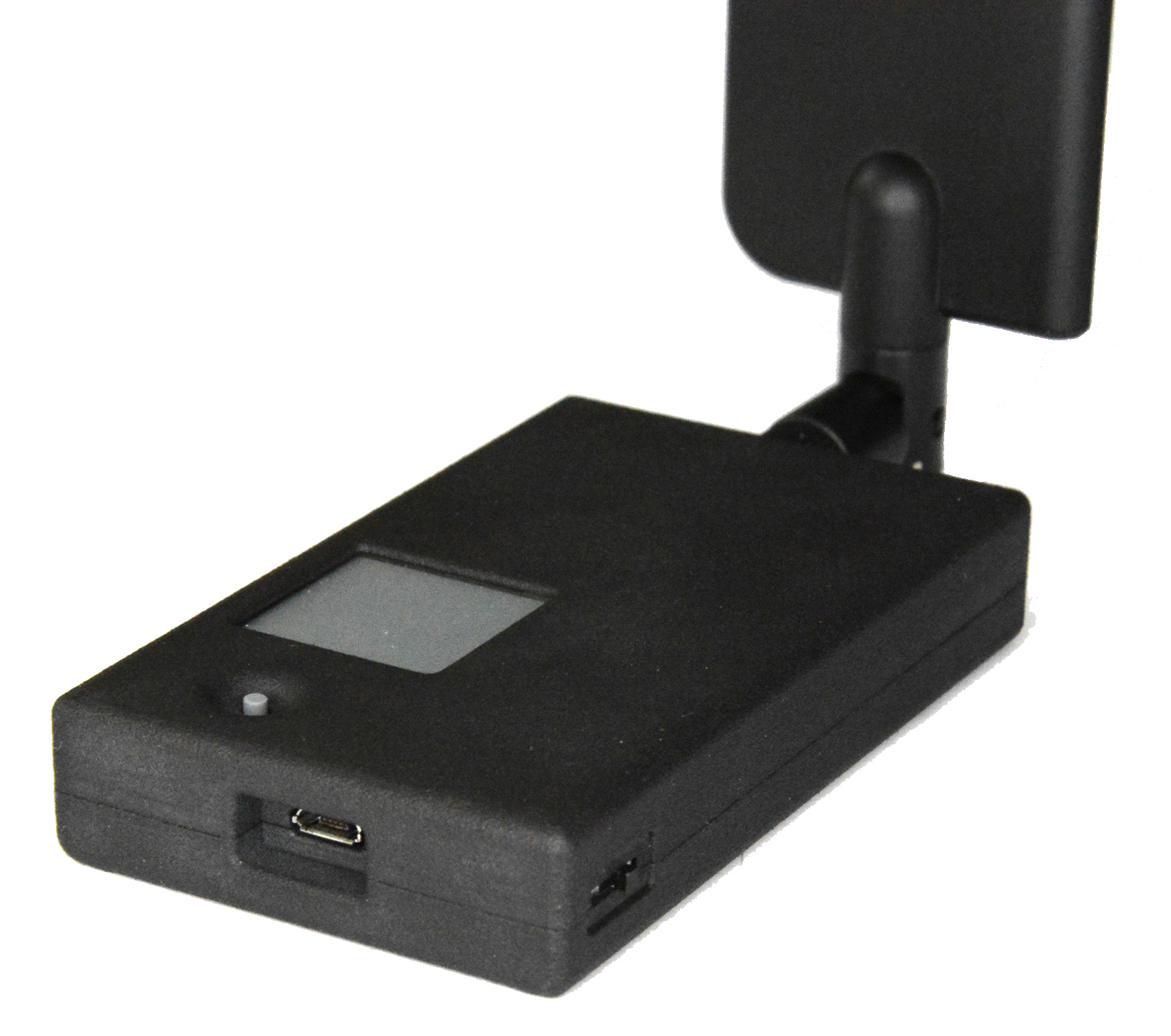

The HighTAG™ 971 LTE Analyzer determines the field strength of available mobile networks and links them with GPS coordinates.
These records are sent via SMS to the configured phone number.

Technical data:
General
Dimensions (LxWxH)100 x 60 x 18,5mm (without antenna)
Weight92g (without antenna)
Power supply1000mAh (+/- 100mAh), 3,7V DC, pluggable (Lithium-Polymer)
USB connectorMicro-USB for configuration and charging
SIM cardMicro-SIM, accessible from the outside
Antenna connectorSMA connector for miscellaneous antennas
GPSIntegrated GPS receiver
Standard colorblack
Bolting4 screws
Order NumberHT971
Frequencies
GSM/GPRS/EDGE900/1800MHz
UMTS/HSPA+900 (BdVIII)
1800 (BdIII)
2100MHz (BdI)
LTE800 (Bd20)
900 (Bd8)
1800 (Bd3)
2100 (Bd1)
2600MHz (Bd7)
